Deepwater Well Abandonment — Outside-Suspension Tool

WELL ABANDONMENT · CHINA'S DEEPWATER PIONEER 弃井服务 · 中国深水弃井先驱

2,083m

FEODE holds China's deepest well abandonment record — 2,083 m water depth, achieved at YL10-6-4 in January 2024. With proprietary single-trip outside-suspension cutting & retrieval tooling and over 50% of CNOOC's exploratory P&A market, we are the country's longest-running deepwater well abandonment provider since the 2009 inaugural service. 远东石油保持中国最深弃井作业纪录——2024年1月 YL10-6-4 井 2,083 米水深。凭借自主研发的深水外悬挂一趟式井口切割回收工具，承担 50%+ 中海油探井弃井业务，是国内自2009年首次深水弃井作业以来运营时间最长的服务商。

Technical Enquiry 技术咨询 View Tool Specifications 查看工具参数

DEPTH PROGRESSION作业水深进阶

From 784m to 2,083m — every record set in the South China Sea 从 784 米到 2,083 米 — 全部纪录均诞生于南海

2012

784 m

HYSY981 platform · China's first deepwater subsea wellhead retrieval海洋石油981平台 · 中国首次深水水下井口切割回收

2019

1,831 m

YL8-3-1 well · Yongle Field, South China SeaYL8-3-1 井 · 永乐油田，南海

2019

1,901 m

YL8-1-2 well · Bluewhale 1 platform · 11h single-trip cutYL8-1-2 井 · 蓝鲸一号平台 · 11小时单趟切割

2021

2,430 m

BD21-1-1 well · Fenjin platform · 9-5/8″ casing cutBD21-1-1 井 · 奋进号平台 · 9-5/8″ 套管切割

2024

2,083 m

YL10-6-4 well · First domestic P&A above 2,000mYL10-6-4 井 · 国内首次突破 2,000 米水深弃井National Record国内纪录

CORE TOOL核心工具

Outside-Suspension Single-Trip Cutting & Retrieval System 深水外悬挂一趟式套管切割回收工具

A fully domestically developed deepwater subsea wellhead retrieval system. The single-trip rotary spear, hydraulic cutter, and screw-motor outside-suspension power assembly perform synchronised cutting and retrieval in one run — saving 15-20 hours and US$400-500k per well compared with conventional methods. 完全自主研发的深水水下井口切割回收系统。一趟式旋转捞矛、水力割刀与外悬挂螺杆动力总成在一趟作业中完成同步切割与回收 — 较传统方法每井节省 15-20 小时、40-50 万美元成本。

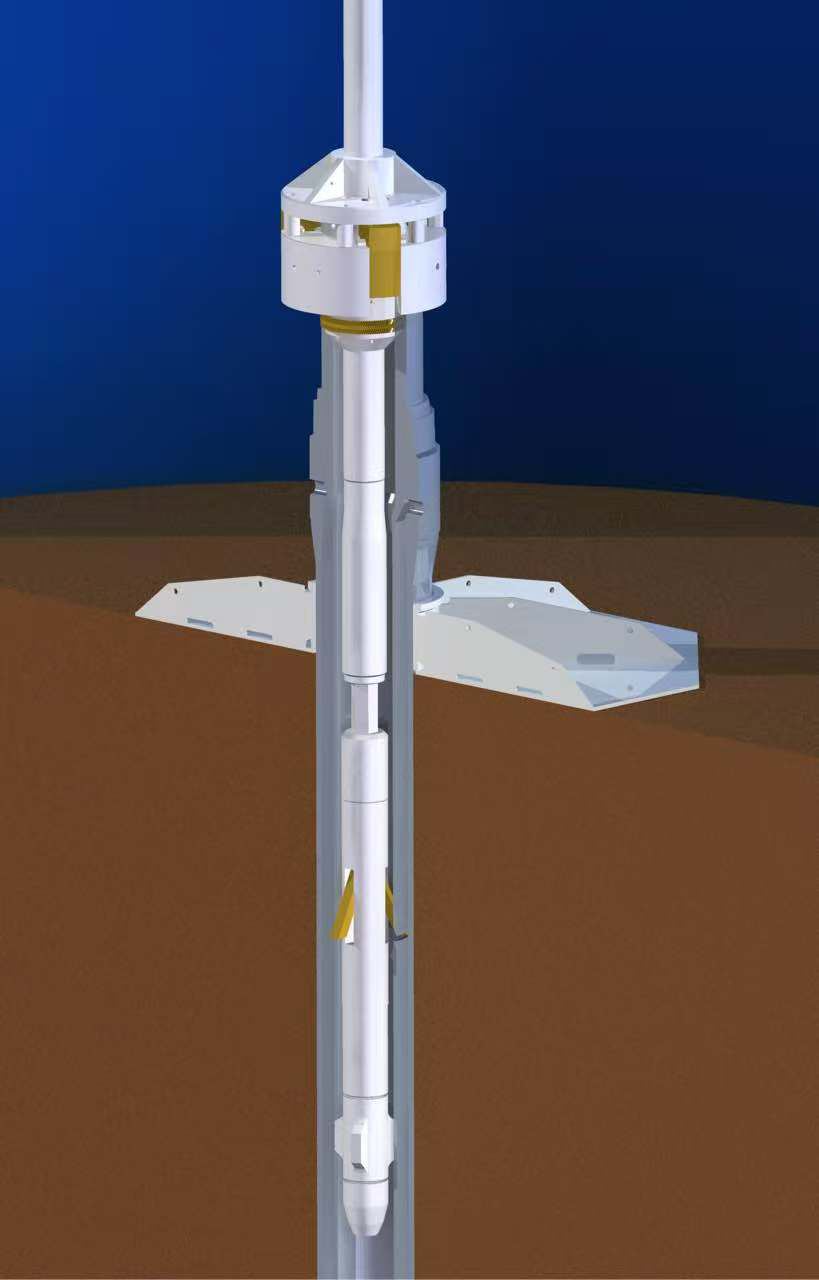

Outside-Suspension Cutting & Retrieval Tool

Outside-Suspension Tool Schematic 外悬挂工具结构示意图

COMPANION TOOLING配套工具

C9 / C13 Hydraulic CuttersC9 / C13 系列水力割刀

Models C9-8-12, C13-8-19, C13-8-42, C13-8-48 · with matched 17-1/2″ non-rotating stabilizer · cutting speed 15-50 rpm · pump pressure 50-1,270 psi.型号 C9-8-12、C13-8-19、C13-8-42、C13-8-48 · 配 17-1/2″ 非旋转扶正器 · 转速 15-50 rpm · 泵压 50-1,270 psi。

Screw-Motor Power Pack外悬挂螺杆动力总成

Model C7LZ244 × 7.0 extended screw motor · flow rate 42-70 L/s · torque 22,500-36,000 N·m · power output >160 kW.C7LZ244 × 7.0 型加长螺杆 · 排量 42-70 L/s · 扭矩 22,500-36,000 N·m · 功率 >160 kW。

String Configuration钻具组合

8″ guide head · 12-1/4″ & 17-1/2″ non-rotating stabilizers · 9″ telescopic sub · 8″ drill collars · 5-7/8″ heavy weight drill pipe · MSA10/A1400 subsea swivel head.8″ 导引头 · 12-1/4″ 与 17-1/2″ 非旋转扶正器 · 9″ 伸缩短节 · 8″ 钻铤 · 5-7/8″ 加重钻杆 · MSA10/A1400 水下旋转头。

TECHNICAL ADVANTAGES技术优势

Why operators choose FEODE for deepwater P&A 国际作业商选择远东弃井的原因

Single-Trip Synchronised Operation一趟式同步作业

Cutting and retrieval performed in a single run-in-hole — eliminating one full round-trip of pipe handling and reducing operational risk on critical-path rig hours.切割与回收在同一趟作业中同步完成 — 省去一趟起下钻时间，减少关键路径作业风险。

Cuts Under Tension带张力切割

Slip mechanism remains stationary while the cutting head operates under tension — providing a cleaner cut and the ability to back-out and release at any moment if needed.卡瓦机构保持静止，切割头在张力作用下作业 — 切割面更平整，且可随时倒开脱手。

Fully Domesticated Technology全国产化技术

The first fully domestic outside-suspension screw-motor cutting & retrieval system in China, breaking the foreign monopoly on deepwater subsea wellhead retrieval since 2009.国内首套全国产化外悬挂螺杆动力水下井口切割回收系统，自2009年起打破国外垄断。

National Patent & Major Programme Output国家专利与重大专项成果

Holder of multiple national patents. Originally developed under China's 12th Five-Year Plan National Major Science & Technology Programme.获多项国家专利。国家科技重大专项十二五立项成果。

Time & Cost Saving显著的时间与成本节约

15-20 hours saved per well versus conventional methods. US$400-500k cost reduction per operation — directly improving project economics and reducing weather-window exposure.较传统作业每井节省 15-20 小时，降低成本 40-50 万美元 — 直接改善项目经济性，减少作业窗口暴露风险。

National Award Recognition国家奖项认可

National Science & Technology Progress Award — Second Prize (2007), and Shenzhen Science & Technology Progress Award — Second Prize (2020, "Deepwater Subsea Wellhead Cutting & Retrieval Tool System").国家科技进步二等奖（2007）；深圳市科技进步二等奖（2020，"深水水下井口切割回收工具系统研制及应用"）。

SELECTED OPERATIONS典型作业案例

Field-validated across the South China Sea 南海全海域实战验证

CURRENT NATIONAL RECORD 现役国内最深纪录

YL10-6-4

2,083 mWater Depth水深 2024-01Operation Date作业时间 CNOOCOperator作业方

January 2024. First Chinese P&A operation to exceed 2,000m water depth at the Yongle field. Successfully cut and retrieved subsea wellhead at 2,083m, setting the all-time national record for the deepest abandonment. 2024年1月。永乐油田作业，国内首次突破 2,000 米水深弃井，成功在 2,083 米深度切割并回收水下井口，刷新中国弃井作业水深纪录。

SINGLE-TRIP MILESTONE 一趟式作业标杆

YL8-1-2

1,901 mWater Depth水深 2019-08Operation Date作业时间 Bluewhale 1Platform作业平台

August 2019. Bluewhale 1 / HYSY981 platform. Completed 20″ × 36″ × δ2″ cut and retrieval at 1,942.82m depth in only 11 hours — demonstrating the single-trip system at near-record water depth. 2019年8月。蓝鲸一号 / 海洋石油 981 平台。在 1,942.82 米深度仅用 11 小时完成 20″ × 36″ × δ2″ 切割回收 — 验证一趟式系统在近纪录水深下的成熟可靠。

HPHT EXPLORATION 高温高压探井

DF17-2-1

HTHPWell Type井别 2020-03Operation Date作业时间 249 min20"/30" Cut Time20"/30" 切割用时

March 2020. HPHT exploratory well at the Dongfang field. Sequential cuts: 9-5/8″ @ 900m (30 min) → 13-3/8″ @ 350m (25 min) → 20″ & 30″ at 4m below mudline (249 min). All cuts completed in single mobilization. 2020年3月。东方油田高温高压探井。连续切割：9-5/8″@900m（30分钟）→ 13-3/8″@350m（25分钟）→ 20″ & 30″ 泥线下 4m（249分钟）。一次进场完成全部切割。

RECORD-BREAKING DEPTH 破纪录深度

BD21-1-1

2,430 mCut Depth切割深度 2021-05Operation Date作业时间 FenjinPlatform作业平台

May 2021. Zhanjiang operations area. Successfully completed 9-5/8″ casing cut at 2,430 m in a single run — the deepest production casing cut achieved by FEODE at that time. 2021年5月。湛江作业区。在 2,430 米深度一次完成 9-5/8″ 套管切割 — 远东石油当时所达成的最深生产套管切割。
